Flexible Coupling Shaft 19mm-20mm 51x44mm MECCANIXITY Spider Coupler

Description

Product Overview

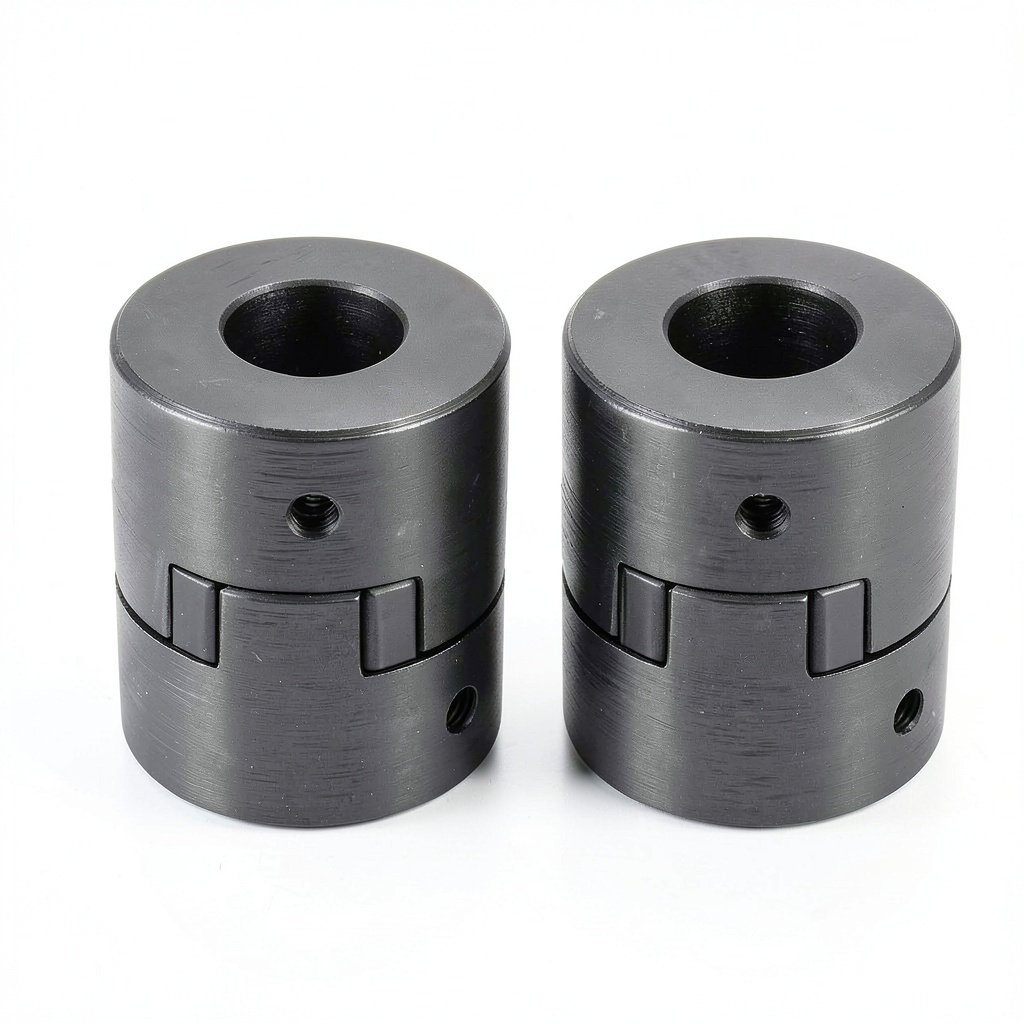

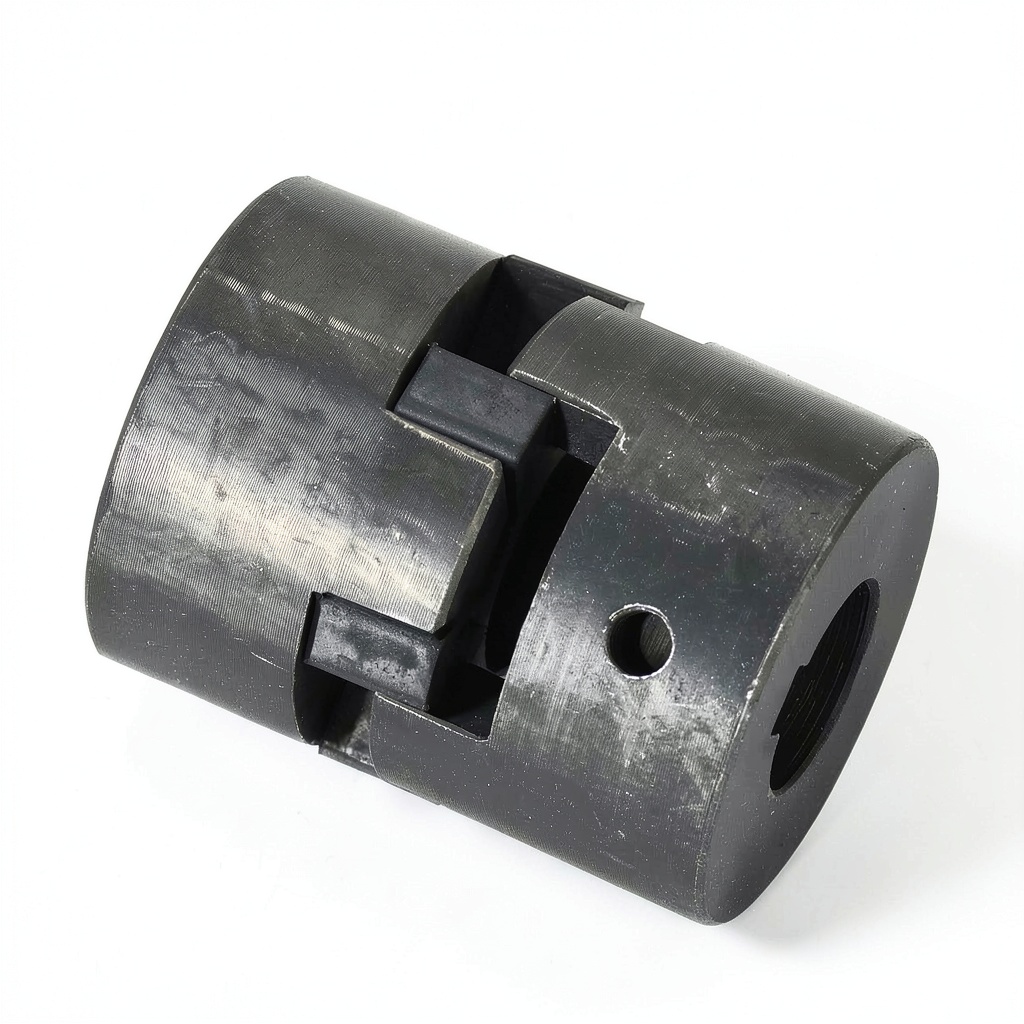

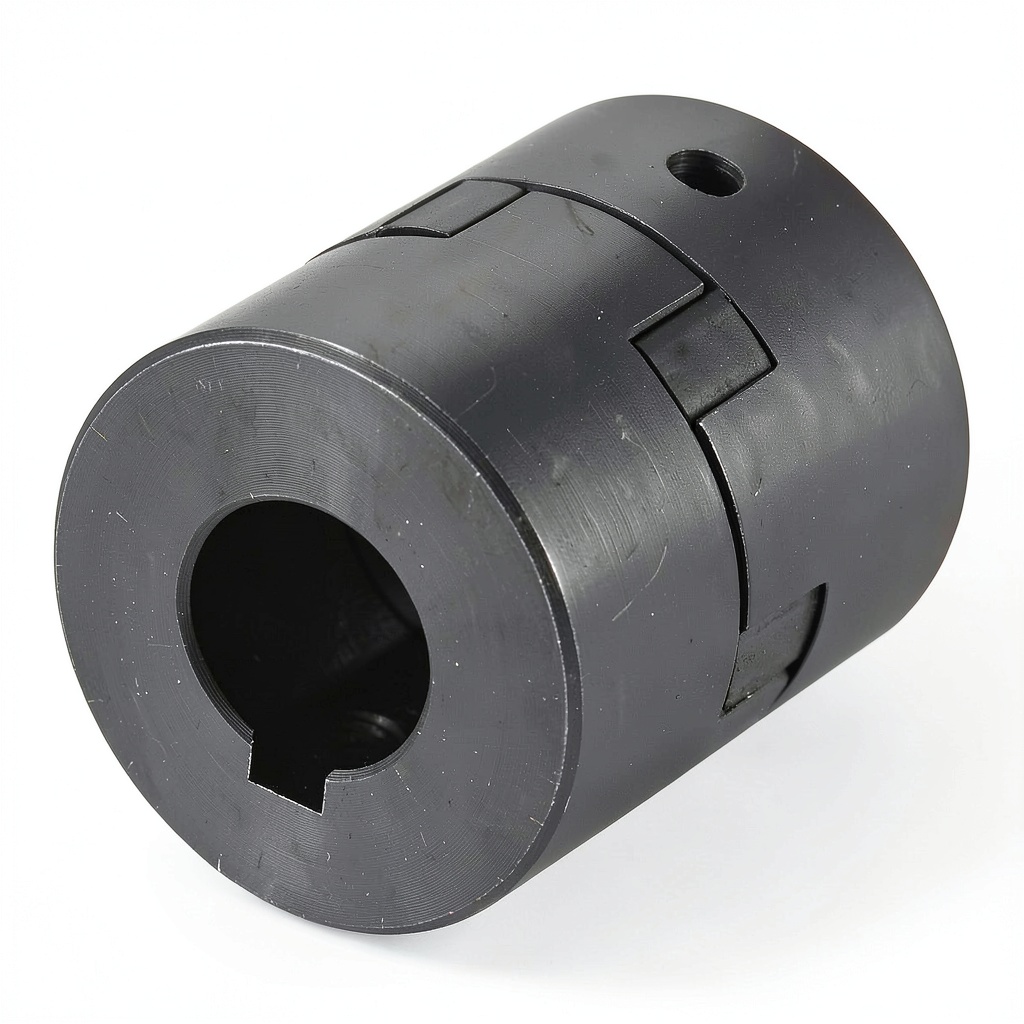

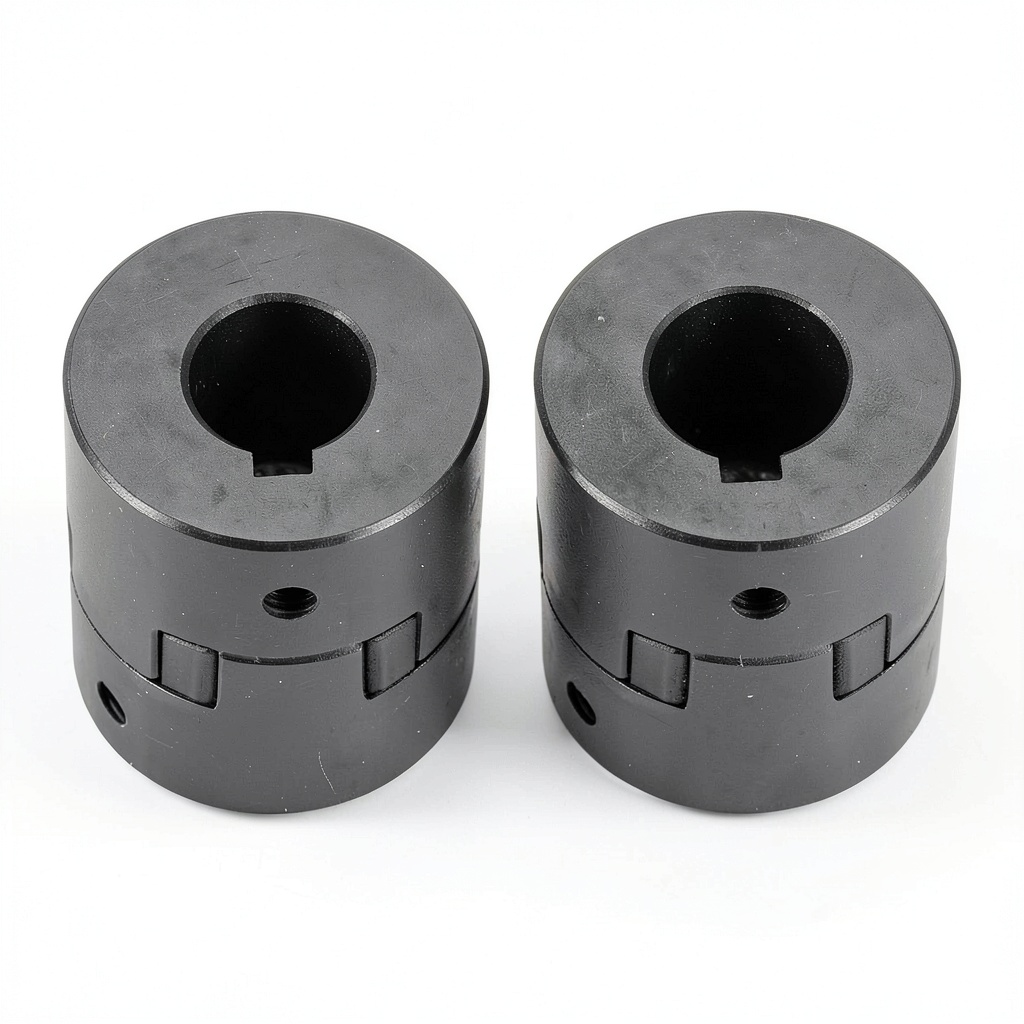

The MECCANIXITY Flexible Coupling Shaft is a precision‑engineered component designed to bridge the gap between motor output shafts and driven equipment with exceptional reliability. Crafted from high‑hardness 45# steel, the coupling offers a robust yet flexible connection that mitigates torsional stress, reduces vibration, and compensates for minor misalignment between the motor and the load. Its dimensions—19mm to 20mm bore diameter, 51mm overall length, and 44mm outer diameter—provide a compact footprint while delivering a spider‑type design that distributes load evenly across six radial arms. This geometry not only enhances torque transmission efficiency but also simplifies installation, as the coupling can be mounted without the need for additional alignment tools. The product’s black finish adds a professional aesthetic and provides resistance to corrosion, making it suitable for a wide range of industrial environments, from cleanroom automation to heavy‑duty manufacturing floors.

Beyond its mechanical attributes, the MECCANIXITY coupling incorporates a threaded M6*1 interface that secures the coupling to the motor shaft with a firm, vibration‑resistant fit. The slot width of 6mm allows for easy insertion of the shaft while maintaining a tight grip that prevents slippage under high‑load conditions. The coupling’s flexibility is further enhanced by its ability to absorb axial and angular displacement, which extends the lifespan of both the motor and the driven equipment by reducing wear on bearings and gear trains. This product is compatible with a variety of motor types, including servo motors, stepper motors, and encoders, making it a versatile solution for diverse applications such as CNC machines, 3‑D printers, robotic arms, and conveyor systems.

Usage

In modern industrial automation, precise motion control is paramount, and the MECCANIXITY Flexible Coupling Shaft excels in environments where accuracy and durability are required. For CNC machining centers, the coupling provides a stable link between the spindle motor and the tool holder, ensuring that cutting forces are transmitted smoothly without inducing excess vibration that could affect surface finish. In robotic applications, the coupling’s ability to tolerate slight angular misalignment allows robotic joints to move fluidly, improving repeatability and reducing maintenance intervals. The coupling is also well‑suited for use in conveyor belt drives, where it can accommodate shaft deflection caused by load variations, thereby preventing premature wear on the drive system.

For hobbyist and prototyping projects, the compact size and straightforward installation process make the coupling an attractive choice for 3‑D printers and small‑scale automation rigs. Its high‑hardness steel construction ensures that even under continuous operation, the coupling maintains its structural integrity, providing consistent performance over extended periods. Additionally, the coupling’s design is compatible with standard motor mounts, allowing users to integrate it into existing setups without extensive modifications. Whether deployed in a high‑speed packaging line, a precision laboratory instrument, or a custom‑built automation platform, the MECCANIXITY coupling delivers reliable torque transfer while protecting critical components from mechanical stress.

Why Choose Us

Choosing MECCANIXITY means selecting a brand with a proven track record in delivering high‑quality power transmission components. Our flexible couplings undergo rigorous testing procedures, including torque endurance, fatigue resistance, and dimensional accuracy checks, to guarantee that each unit meets or exceeds industry standards. The use of 45# steel, a material known for its superior hardness and wear resistance, ensures that the coupling can withstand demanding operational conditions without deformation or loss of performance.

We stand behind our products with a comprehensive warranty and responsive customer support. Our technical team is available to assist with installation guidance, troubleshooting, and customization requests, ensuring that you receive the optimal solution for your specific application. Moreover, our manufacturing processes adhere to ISO‑9001 quality management principles, providing you with confidence that every coupling is produced with consistent precision and reliability. By partnering with MECCANIXITY, you gain access to a network of expertise, timely delivery, and a commitment to continuous improvement that keeps your operations running smoothly.

Key Features

• High‑hardness 45# steel construction delivers long‑lasting durability and wear resistance.

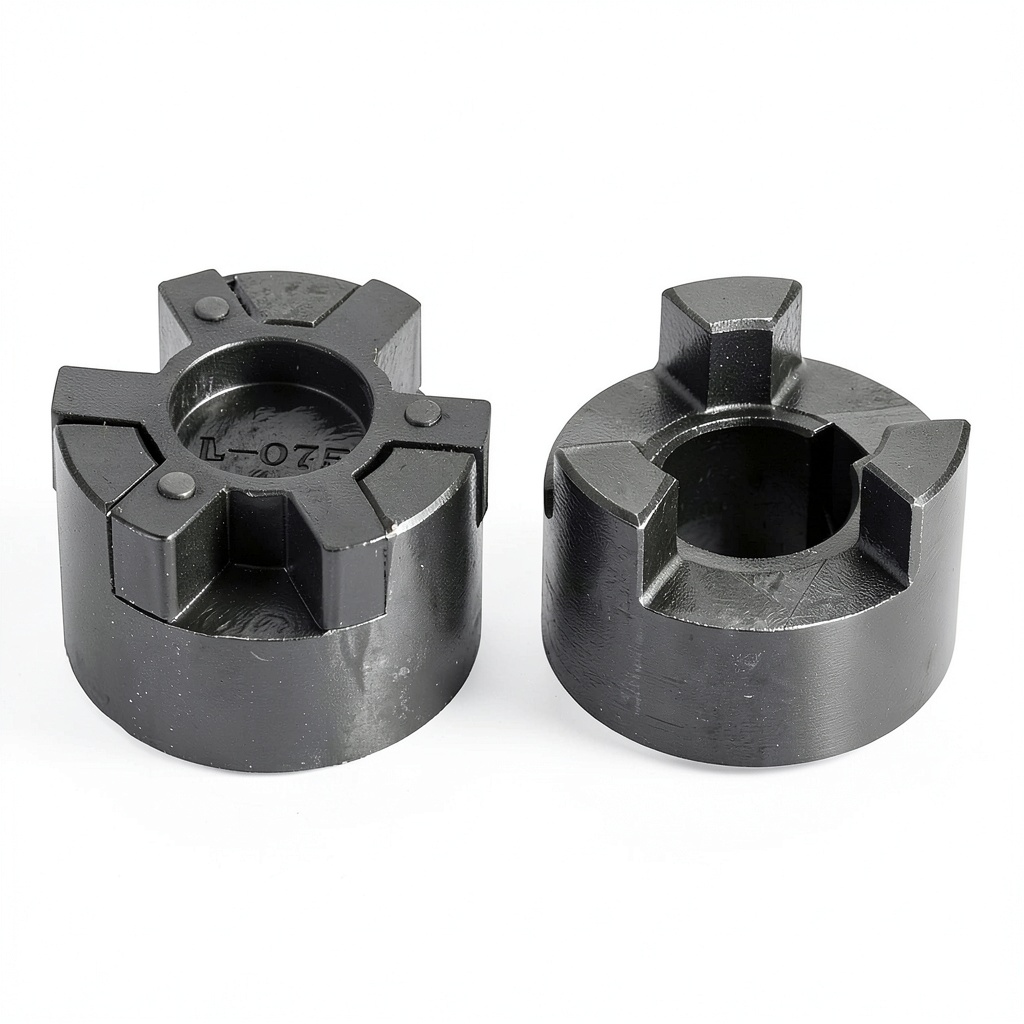

• Spider design with six radial arms evenly distributes torque, reducing vibration and stress.
• Flexible coupling absorbs axial and angular misalignment, protecting motor bearings and gear trains.
• Compact 19‑20mm bore and 44mm outer diameter fit a wide range of motor sizes and equipment.
• Responsive after‑sales support and warranty ensure reliable performance and peace of mind.

FAQ

What motor types are compatible with this coupling?

The coupling is compatible with servo motors, stepper motors, and encoder shafts that have a bore diameter between 19mm and 20mm, making it suitable for most standard industrial and hobbyist applications.

Can the coupling handle high torque loads?

Yes, the high‑hardness 45# steel material and spider‑type geometry allow the coupling to transmit substantial torque while minimizing the risk of slippage or deformation under load.

Is the coupling adjustable for misalignment?

The flexible design inherently compensates for minor angular and axial misalignment, eliminating the need for additional alignment tools during installation.

What is the warranty period for this product?

MECCANIXITY provides a one‑year limited warranty covering manufacturing defects, backed by dedicated technical support for installation and troubleshooting.

How do I install the coupling on my motor shaft?

Simply align the bore of the coupling with the motor shaft, insert the shaft into the 19‑20mm bore, and secure it using the M6*1 threaded interface. Ensure the coupling is seated evenly to achieve optimal torque transfer.
